Name: CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: CSK30
Price: 3.50 USD
Availability: InStock

Casa Produtos Um rolamento da embreagem da maneira

CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing

Detalhes do produto:

Lugar de origem:	Jiangsu, China
Marca:	SUMA
Número do modelo:	CSK30

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	2
Preço:	$3.50-3.80

Contato

Descrição de produto detalhada

Tipo:	Sprag	Classificação de precisão:	P0
Tipo de vedação:	Selado	Material:	GCR15
Diâmetro interno:	30mm	Diâmetro externo:	62mm
Grossura:	16mm	Capacidade de torque:	138 Nm
Peso:	0,21g	Carga dinâmica:	11.7kn
Carga estática:	6.45kn	Velocidade máxima:	4200min-1
Torque de arrasto:	4.4ncm	Série de rolamentos:	6206
TÍPICO DE SPRAG:	formchromed
Destacar:	30mm sprag clutch bearing , sealed one way bearing , CSK30 one way clutch bearing

CSK30 One Way Bearing CSK 30 Sprag Clutch Bearing

Product Specifications

Attribute	Value
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining
Type	sprag, sprag type
Precision Rating	P0
Seals Type	sealed
Material	Steel, GCr15
Product name	csk sprag clutch bearing
Brand	SUMA
OEM	ACCEPT
Stock	rich
Package	wooden box, tube, pulley
Port	Shanghai;Ningbo
Delivery time	7-10 days

Product Description

The CSK30 One Way Bearing is a sprag type freewheel integrated into a 62 series ball bearing (except size 8 and 40). This bearing comes supported, delivered grease lubricated and protected against dust particles larger than 0.3mm.

Key Features

Sprag type one-way clutch bearing
Made from high-quality GCr15 steel
Formchromed sprags for increased overrunning lifetime
Sealed design for protection against contaminants
Precision rated P0 for reliable performance

Technical Parameters

Product name	CSK30 one way sprag bearing
Model	CSK30
Material	GCr15
Inner diameter	30mm
Outer diameter	62mm
Thickness	16mm
Torque capacity	138Nm
Weight	0.21g
Package	Carton Box / Wooden box
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	2-4 days for the sample, 7 days for big order

Performance Data

Type	Size	Bearing series	Bearing loads	Weight	Drag torque
CSK(KK)	30	6206	138 Nm	0.21 kg	4.4 Ncm

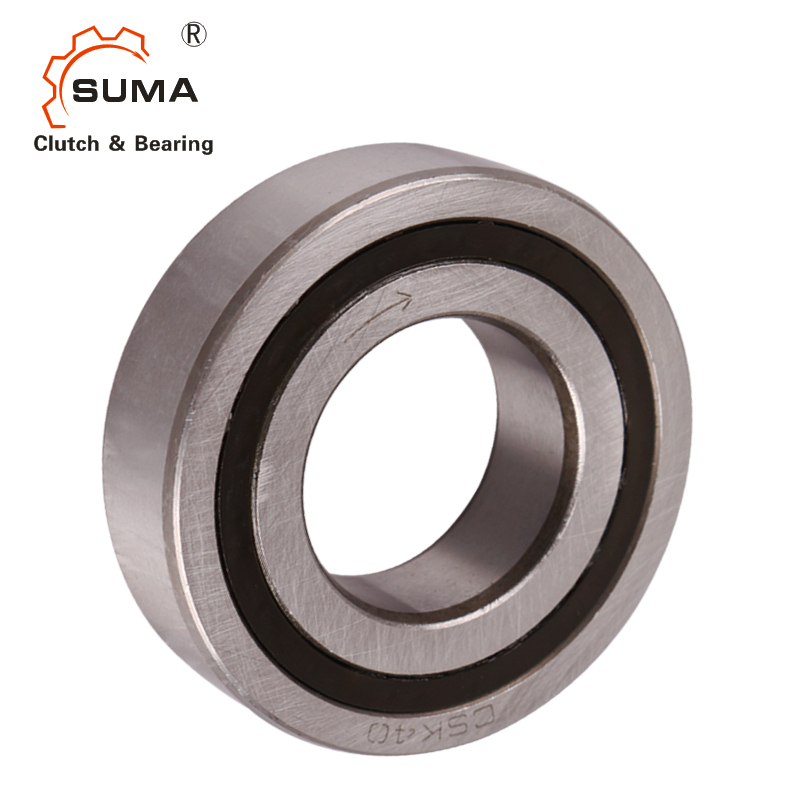

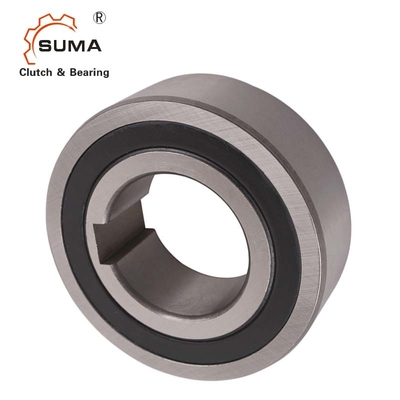

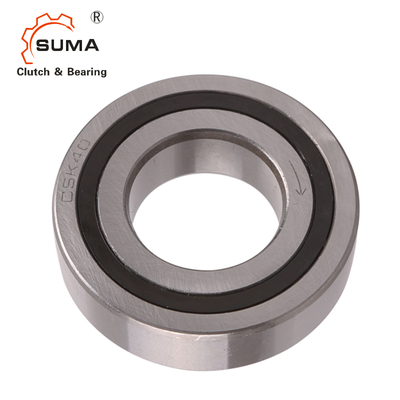

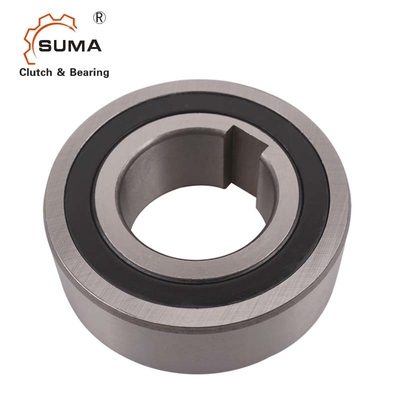

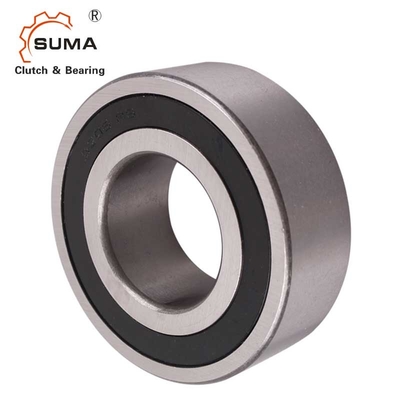

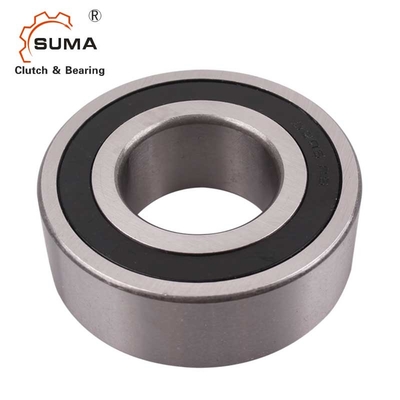

Product Images

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) is a specialized manufacturer producing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and other bearings with high technology.

We follow "Best Quality, Best Price, Fast Delivery, Best Service" to satisfy all our customers.
