Name: 4.061 Combination roller bearing Combined Bearings
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: 4.061
Price: 21.00 USD
Availability: InStock

Casa Produtos Yoke Type Track Roller Bearing

4.061 Combination roller bearing Combined Bearings

Detalhes do produto:

Lugar de origem:	China
Marca:	SUMA
Certificação:	ISO SGS
Número do modelo:	4.061

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Preço:	USD20-USD23 PER PIECE
Detalhes da embalagem:	Caixa de papelão
Tempo de entrega:	2-5 dias
Termos de pagamento:	L/C, D/A, D/P, T/T, Western Union, Paypal
Habilidade da fonte:	100000 PCs por mês

Contato

Descrição de produto detalhada

Nome do produto:	Rolamento combinado	Material:	Rolamento de aço GCR15
TAMANHO:	509032mm	Din. Capacidade de carga:	10.000
Sta. Capacidade de carga:	161000	Pacote:	Bloco do rolo + caixa da caixa
Garantia:	6 meses	OEM:	Aceitar

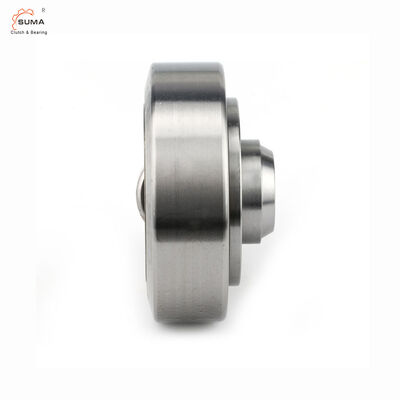

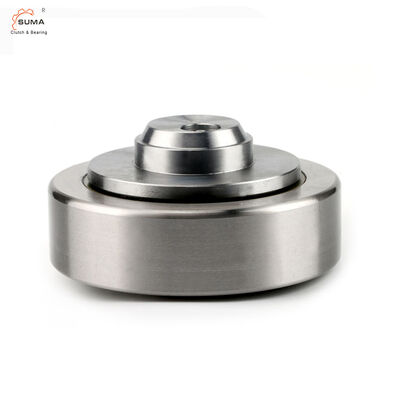

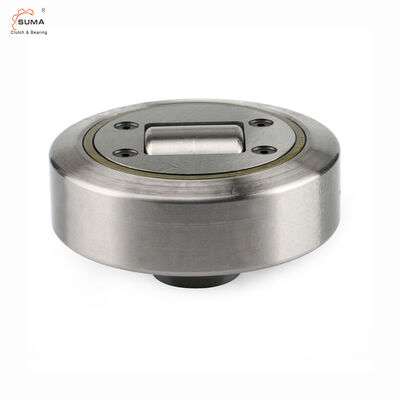

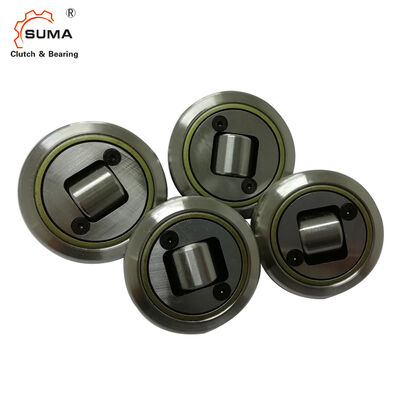

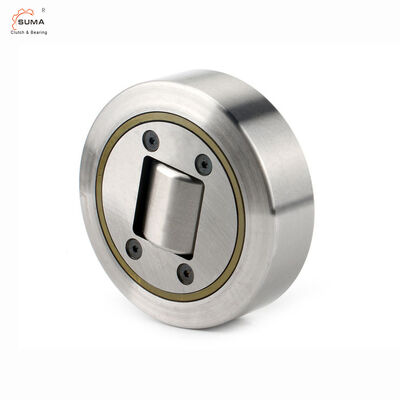

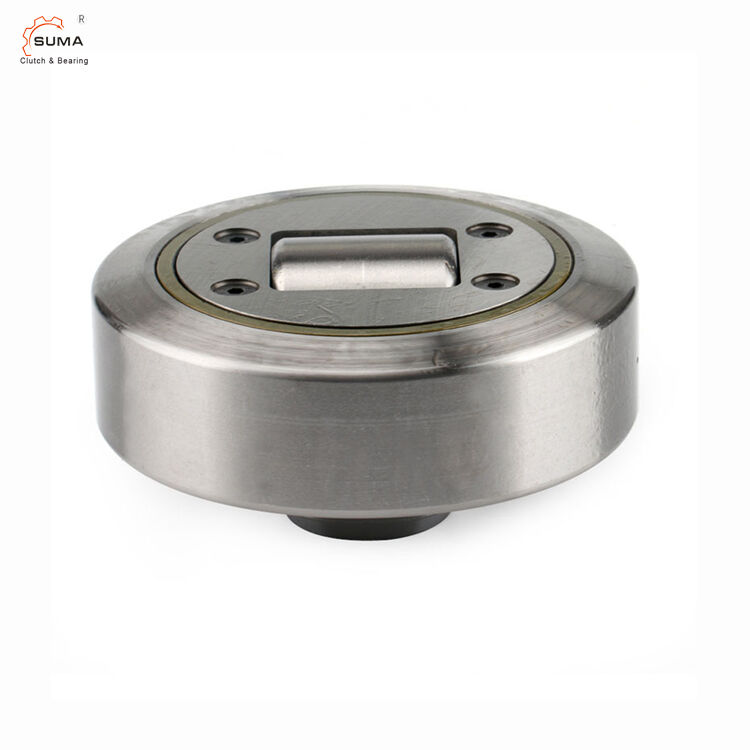

4.061 Combination roller bearing Combined Bearings

Description of Combined Roller Bearing for Forklift

The Combined Roller Bearing is composed of two main rollers, a side roller and a shaft head, which are installed in two different directions to reduce space and reduce manufacturing costs. The radial and axial direction bearing capacity is relatively large, and the accessories are highly replaceable. The adjustable combined roller bearing can adjust the position of the mandrel by adjusting the eccentric outer hexagon or the eccentric valve to achieve the purpose of adjusting the axial dimension of the side roller.

Composite roller bearings are mainly used in: forklifts, stackers, metallurgical industry, container front forks, cranes and other large lifting equipment and material lifting equipment.

Catalogue of Combined Roller Bearings for Forklift

4.061 Combination roller bearing Combined Bearings 0

Model No.	D mm.	T mm.	d -0.05 mm.	H mm.	h mm.	B mm.	A mm.	S mm.	r mm.	C KN	COKN	COAKN	r/pm max.	Weight kg
4.053	52,5	40	30	33,0	27,0	17	5,0	15	2	24,0	32,0	7	800	0,46
4.054	62,5	42	30	37,5	30,5	20	2,5	20	3	31,0	35,5	11	900	0,53
4.055	70,1	48	35	44,0	36,0	23	2,5	22	4	45,5	51,0	14	900	0,80
4.056	77,7	54	40	48,0	36,5	23	3,0	26	4	48,0	56,8	18	800	1,00
4.057	77,7	53	40	40,0	29,0	23	3,0	26	4	48,0	56,8	18	800	0,87
4.058	88,4	59	45	57,0	44,0	30	3,5	26	3	68,0	72,0	23	750	1,62
4.059	101,2	67	50	46,0	33,0	28	3,0	30	3	73,0	82,0	27	700	1,74
4.06	107,7	71	55	54,0	39,0	31	3,0	34	5	81,0	95,0	36	650	2,27
4.061	107,7	71	60	69,0	55,0	31	4,0	34	5	81,0	95,0	36	650	2,82
4.062	123,0	80	60	72,3	56,0	37	5,0	40	5	110,0	132,0	50	550	3,89
4.063	149,0	103	60	78,5	58,5	43	5,5	50	3	151,0	192,0	71	450	6,52
